Who We Are

Anping Shengxiang Metal Products Co., Ltd. is located in Anping Town, "the Hometown of Wire Mesh", also known as "the Production and Distribution Base of Wire Mesh".

Razor Wire

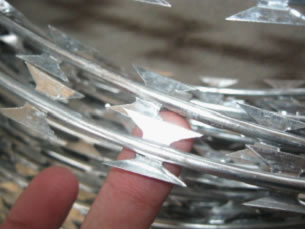

Razor wire, Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and wire.

Material: galvanized steel plate and wire, stainless steel plate and wire.

Property: It is beautiful and practical, corrosion resistance, aging resistance.

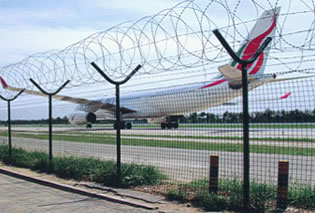

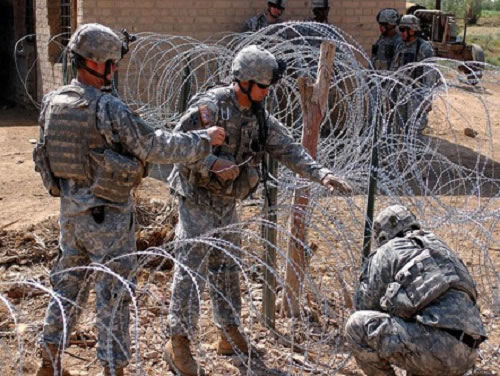

Use: currently, barbed tape has been widely used by many countries in military field, prisons, detention houses, government buildings and ohter national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.

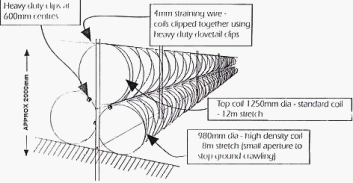

Installed:

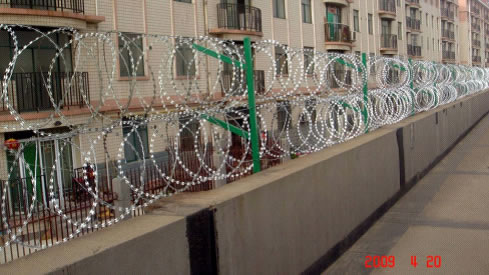

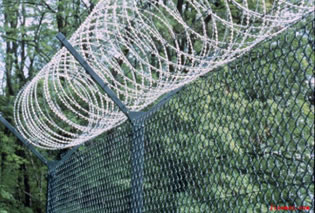

Barbed tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult.

Specifications:

Blade Size Style Thickness Diameter of center line Length Width Distance
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 26±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5 28 15 45±1
BTO-30 0.5±0.05 2.5 30 18 45±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2





Single coil   (without  clips)

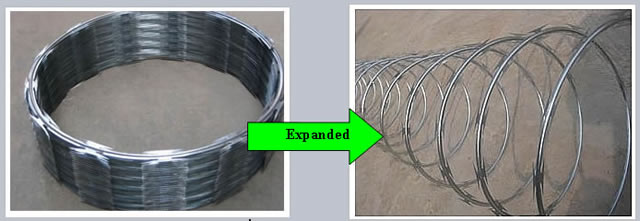

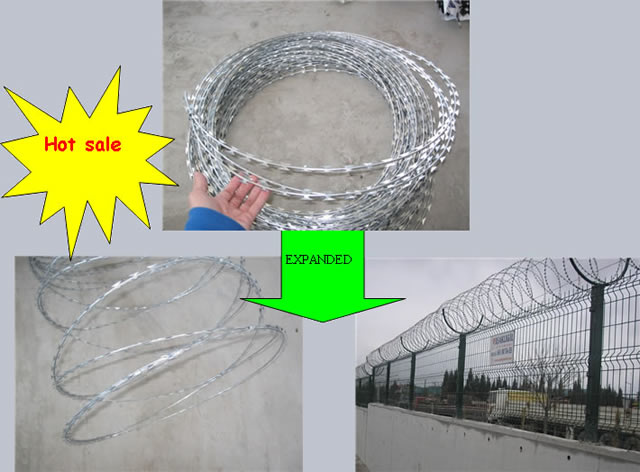

Concertina Razor wire is a type of razor wire that is for med by clips in large coils which can be expanded like a concertina.

Each coil actually consists of two oppositely wound helices which support each other against crushing while allowing easy.

Clips

Concertina Razor Wire coil (WITH CLIPS)

How to CLIP:

Concertina razor wire is supplied typically in single coils(unclipped) or crossed spiral coils(clipped). razor wire cross and fastened by iron clips.

The near two razor wires are closely combined by a clip, up, down and sideways are interwoven and meshed with each other.

Razor  wire
Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 53 13M CBT-65 Single coil
500mm 102 16M BTO-10.15.22 Cross type
600mm 86 14M BTO-10.15.22 Cross type
700mm 72 12M BTO-10.15.22 Cross type
800mm 64 10M BTO-10.15.22 Cross type
960mm 52 9M BTO-10.15.22 Cross type
All the blade type  and  diameter can be made as requirement and to single coil or cross type

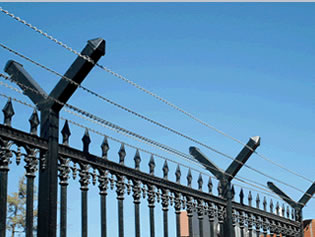

straight line razor wire

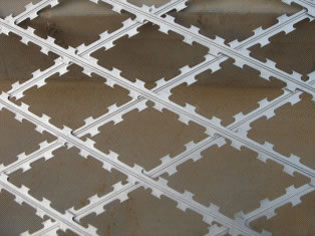

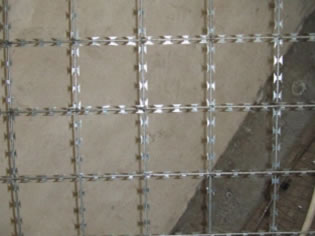

welded razor wire mesh



Flat Razor wire tape



razor wire tape

Packing:

Waterproof paper inside Plastic woven cloth outside

Press and binding with steel strip loading container 1x20FT = 20 Ton

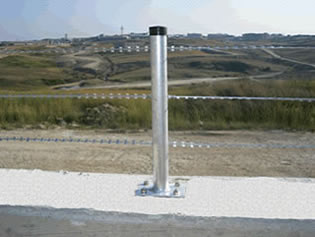

Applications
