BTO = Barbed Tape Obstacle  CBT = Concertina Barbed Tape

Concertina wire Technical List

A. Materials:
    1.The concertina wire made of high tensile wire. The core wire shall be high tensile wire ranging between
       1400 to 1500Mpa in 2.5mm diameter, and be of galvanized steel wire, zinc coating: 245g/m2.

    2.The blades shall be of 0.5mm thickness stainless steel 304 grade sheet.

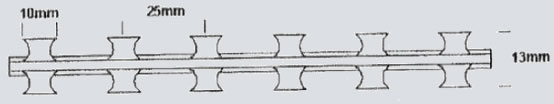

B.Design as follow

Razor Wire Specification List

Reference Number Blade Style Thickness Wire Dia Barb Length Barb Width Barb Spacing
BTO-10   0.5±0.5 2.5±0.1 10±1 13±1 26±1


C. Coil Dimension

Diameter Stretch length Spiral Turns Clips
915mm 15m 52 5



The following tolerances shall be permissible:

1.Blades: 0.5mm+/-0.05mm

2.Core diameter: 2.5mm+/-0.1mm

3.coil diameter: 915mm+/-10%

4.Spiral Turns(loops): 55 nos.+/-4

5.Barb length: 10mm+/-1mm

6.Bard width: 13mm+/-2mm


Barbed wire Technical

Gauge of strand and barb Barbs Spacing Length of per kilogram
BWG 12X14  4'' 7.9m

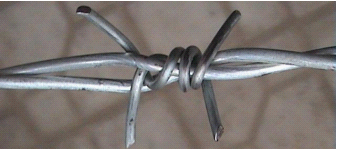

Hot dipped galvanized zinc coating 50-60g/m2,Two strand,Barbed 4 point,as follow picture.
