Anping Shengxiang Metal Products Co., Ltd.

Concertina Coil Wire

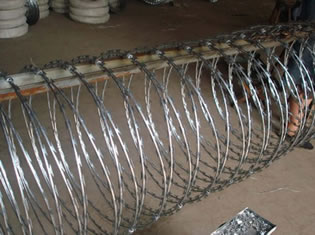

Crossed Concertina Razor Coils, concertina coil wire

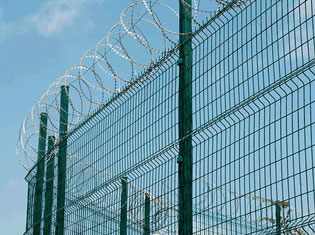

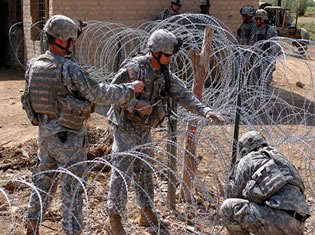

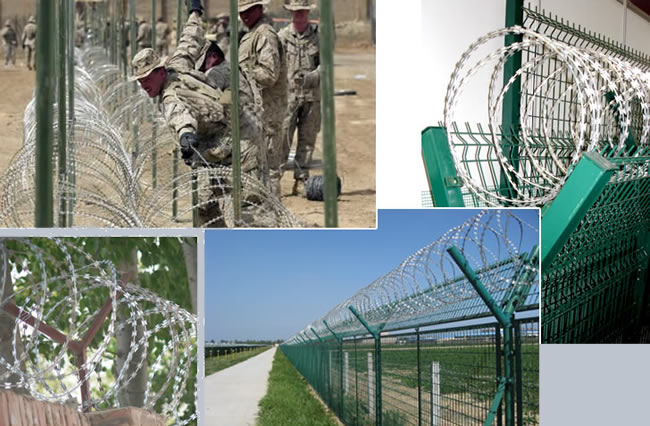

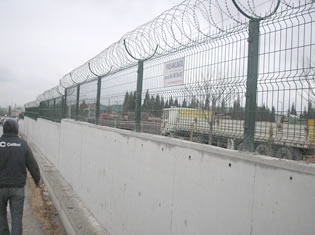

Concertina coils are the most popular high security fencing for military and high grade residences safety. Two main types available for concertina coils: one is the single coil and the other is crossed concertina coils. Crossed concertina offers the highest security grade among all the razor wire fencings.

Concertina type razor coil wire is installed without clips and it runs in natural loops on walls. It costs less with easy installation.

Materials: Galvanized steel sheet, stainless steel sheet.





Razor Blade Specification:

Blade Size	Style	Thickness	Diameter of center line	Length	Width	Distance
BTO-10		0.5±0.05	2.5±0.1	10±1	13±1	26±1
BTO-12		0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28		0.5±0.05	2.5	28	15	45±1
BTO-30		0.5±0.05	2.5	30	18	45±1
CBT-60		0.6±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65		0.6±0.05	2.5±0.1	65±2	21±1	100±2

Barbed Tape Concertina (BTC);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request.

Barbed Tape Wire Specification:

Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	8M	CBT-65	Single coil
500mm	41	10M	CBT-65	Single coil
700mm	41	10M	CBT-65	Single coil
960mm	53	13M	CBT-65	Single coil
500mm	102	16M	BTO-10.15.22	Cross type
600mm	86	14M	BTO-10.15.22	Cross type
700mm	72	12M	BTO-10.15.22	Cross type
800mm	64	10M	BTO-10.15.22	Cross type
960mm	52	9M	BTO-10.15.22	Cross type

Notes:
Standard products are shown in the tables above, special specifications available on request.
Standard materials are either galvanized or stainless steel.
